OEM/ODM 50A Level 2 EV Charger (12kW) | EV-ACT5003U Manufacturer

Home Products AC Commercial

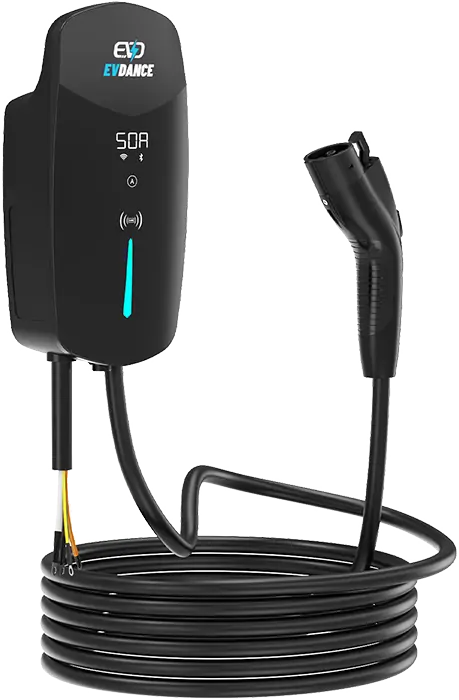

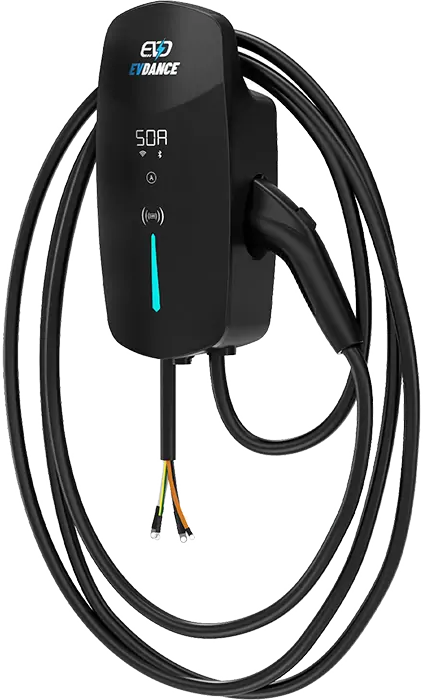

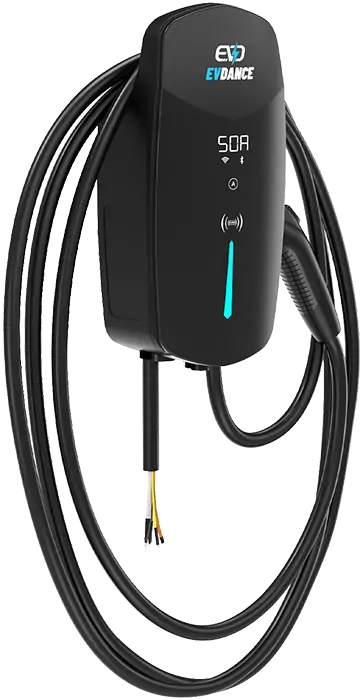

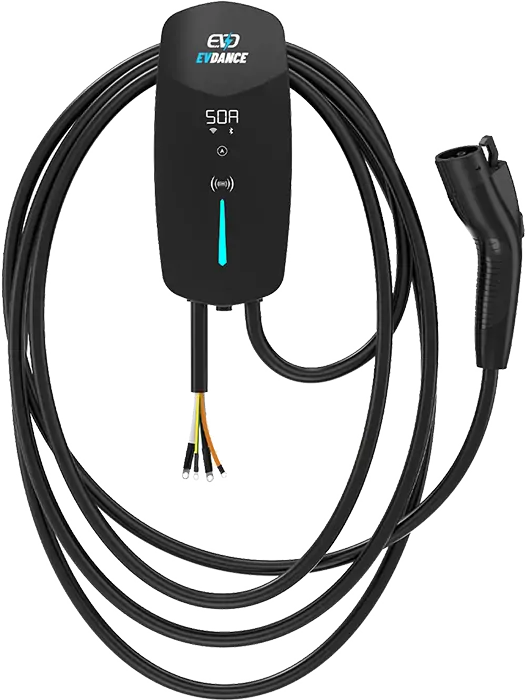

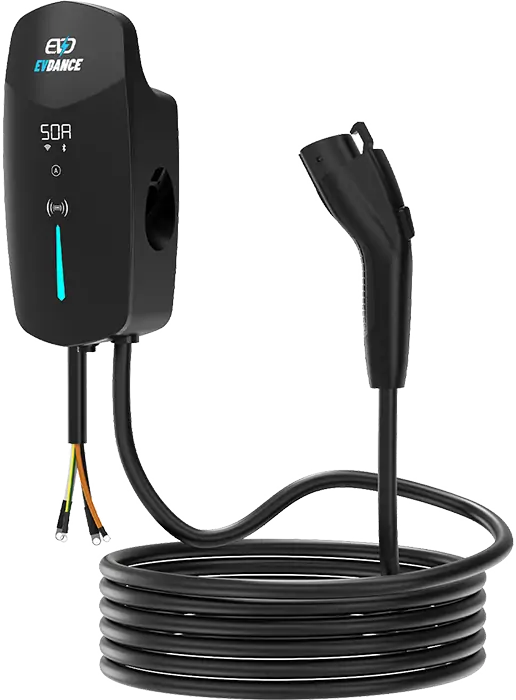

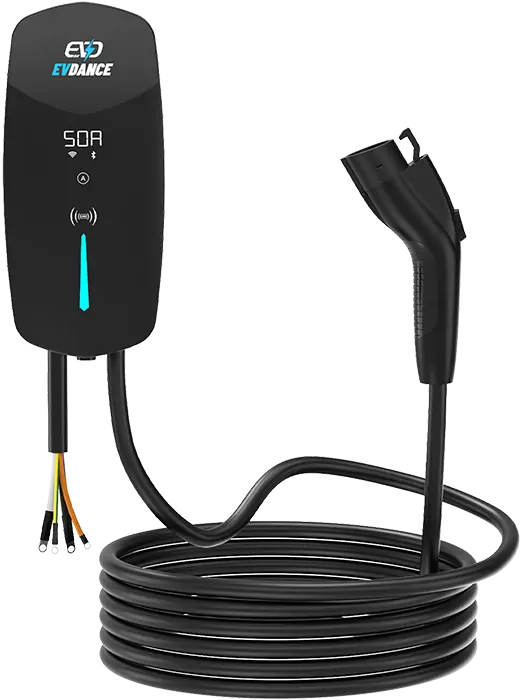

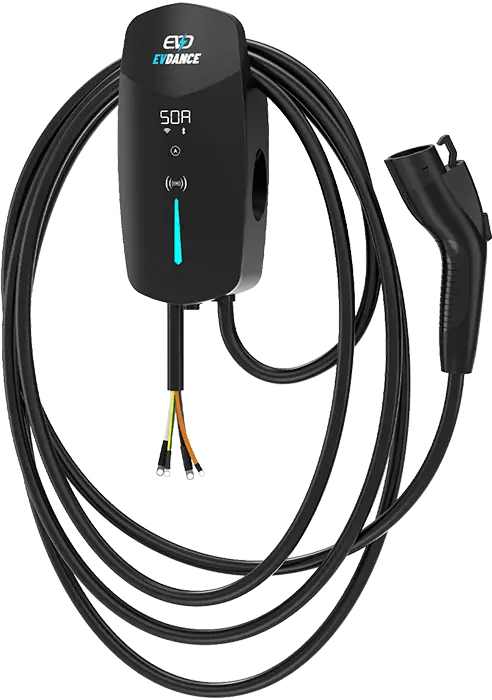

50A Commercial Wall-Mounted EV Charger
(EV-ACT5003U)

50A1 Phase12kW

The EVDANCE 50A Level 2 EV Charger is the ideal, high-margin solution for distributors and electrical installers looking to scale their residential and light-commercial projects. Engineered with open-standard OCPP 1.6J, dynamic load balancing, and smart solar integration, this rugged IP66-rated station delivers maximum reliability with minimal callback rates. Fully customizable for OEM/ODM brand partners.

Get a Bulk Quote & Sample

Product application

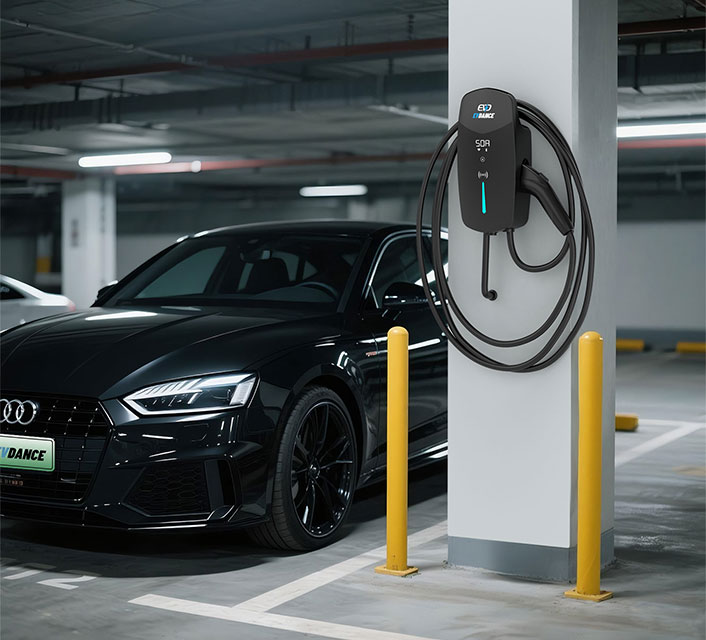

Enjoy Flexible Deployment

The EVDANCE Series offers two versions: wall-mount and portable. While the wall-mount unit is tailored for commercial enterprises, both provide adaptable and convenient charging solutions.
Safe & Fast Charging

Compliant with OCPP 1.6J and rigorous global safety standards, the EVDANCE Series ensures reliable operation. Its multi-layered security and high-level protection effectively safeguard user data and connected devices.

Key Benefits

Advantages

High-Efficiency Charging

High-power intelligent output

3x faster than industry standards

Energy-efficient performance

Uncompromising Safety

Military-grade protection system

Auto-shutdown for overloads/errors

Enhanced safety engineering

Smart Digital Control

Real-time charging monitoring

Remote start/stop via app

Detailed usage analytics

Custom Branding Ready

White-label OEM/ODM support

Custom colors & designs

Scalable commercial solutions

Product parameters

EVDANCE 50A AC Commercial Charger

Technical Specifications

Performance Resilience Connectivity Certifications

Maximum Charging Power

12kW Max (Single-Phase)
Max Rated Current

50A
Charge Connector

Type 1 / Sae J1772
Cable Length

25 ft (7.6 m)
Input Plug

Hardwired / NEMA 14-50P / Customizable per batch
Start Modes

Plug-and-Play / RFID / Mobile App

IP Rating

IP66
Operating Temperature

-30℃ to +50℃
Storage Temperature

-40℃ to +85℃
Enclosure Material

PC + TPU (impact-resistant, UV-stabilized)
Installation Type

Wall-Mounted
Package Dimensions (L×W×H)

44 × 34 ×20 cm
Net Weight

5.4 kg

RFID

Mifare ISO/IEC14443A
Communication

Wi-Fi, Ethernet, Bluetooth
4G

Optional
OCPP

1.6 Json
LED

Tri-Color Status

Safety Features

GFCI (RCD Type A) with 6mA DC Leakage Detection
Compliance

ETL Listed (UL 2594 / UL 2202), FCC
Charging Standard

Level 2

This 12kW / 50A single-phase configuration represents the most requested specification by North American and European installation contractors, balancing optimal charging speed with standard residential electrical panels.

RECOMMEND POPULAR PRODUCTS

40A Commercial Wall-Mounted EV Charger
(EV-ACS4005T)

40A1 Phase9.6kW

40A Green Energy Charging
Solar/Wind Synced 35% Carbon Reduction*
Auto-adjusts to renewable supply
Off-peak energy storage
Weatherproof lP66 housing

Discover More

40A Commercial Wall-Mounted EV Charger
(EV-ACT4004U)

40A1 Phase9.6kW

40A Green Energy Charging
Power Output: 40A AC(240V.9.6kW)
Connector: Level 2
Cooling System: Liquid-Cooled

Discover More

50A Commercial Wall-Mounted EV Charger
(EV-ACT5004T)

50A1 Phase12kW

50A Green Energy Charging
Solar/Wind Synced 35% Carbon Reduction*
Auto-adjusts to renewable supply
Off-peak energy storage
Weatherproof lP66 housing

Discover More

Certification-Focused

Certified Performance Excellence Rigorous Validation by Global Authorities

IP66 Validation

Submerged 1m/30min (IEC 60529)
Arctic Endurance

-40℃ cold start (EN 60068-2-1)
Salt Spray Resistance

1,000hrs (ISO 9227)
Surge Protection

6kV lightning test (IEC 61000-4-5)

Frequently Asked Questions

Global Buyers' Top Concerns

01

What's delivery time?

Stock: 3 days (US/EU warehouses). Custom:7 days. Air freight for emergencies.
02

Do you provide custom branding?

OEM services available: Custom logos/colors + certification support. MOQ 100 units.
03

Can I monitor remotely?

Yes: Track usage & costs via app/web. Integrates with Fleetio/Geotab for fleet management.
04

Is it compatible with my EV?

Works with all brands (Tesla, BYD, VW etc.) using Type 1/2/CCS connectors. OCPP 1.6J enables plug-and-charge.
05

What charging speeds do you offer?

Commercial-grade power (3.7-22kW+) with 3x faster charging than standard units. Intelligent grid adjustment ensures optimal performance.

Grow Your Charging Business with EVDANCE.

Contact our B2B team today for authorized distributor programs, wholesale price sheets, and full technical support.
