50A Commercial Wall-Mounted EV Charger
(EV-ACT5006U/B)

50A1 Phase12kW

The EVDANCE 50A Level 2 EV Charger is the ideal, high-margin solution for distributors and electrical installers looking to scale their residential and light-commercial projects. Engineered with open-standard OCPP 1.6J, dynamic load balancing, and smart solar integration, this rugged IP66-rated station delivers maximum reliability with minimal callback rates. Fully customizable for OEM/ODM brand partners.

Get a Bulk Quote & Sample

Product application

Enjoy Flexible Deployment

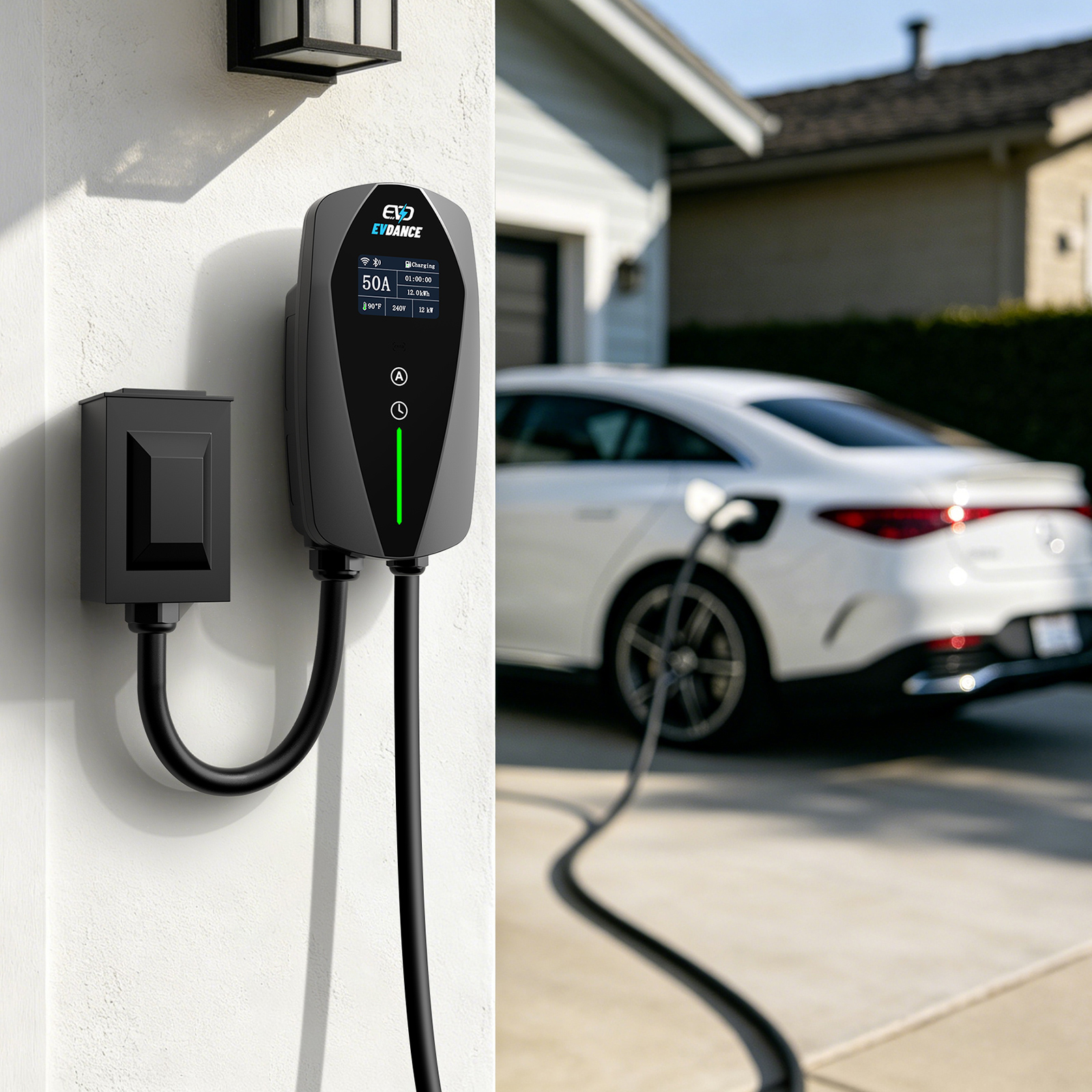

Perfect for high-demand residential properties, multi-family housing, and workplace fleets. Available in both wall-mount and portable configurations to meet diverse client requirements.
Safe & Fast Charging

Fully compliant with OCPP 1.6J and rigorous global safety standards. Features multi-layered hardware protection and secure encrypted data transmission, ensuring worry-free operation for installers and end-users alike.

Key Benefits

Advantages

High-Demand Performance

• 12kW fast charging to support all major EVs.

• Significantly reduces vehicle downtime.

Zero-Maintenance Reliability

• Comprehensive industrial-grade protections.

• Minimizes installer callbacks and warranty claims.

OCPP Smart Management

• Native OCPP 1.6J compliance for effortless fleet integration.

• Smart App tracking for monetization or off-peak scheduling.

Full OEM/ODM Support

• White-label branding ready (custom logo & casing colors).

• Scalable manufacturing to match your wholesale supply chain.

Product parameters

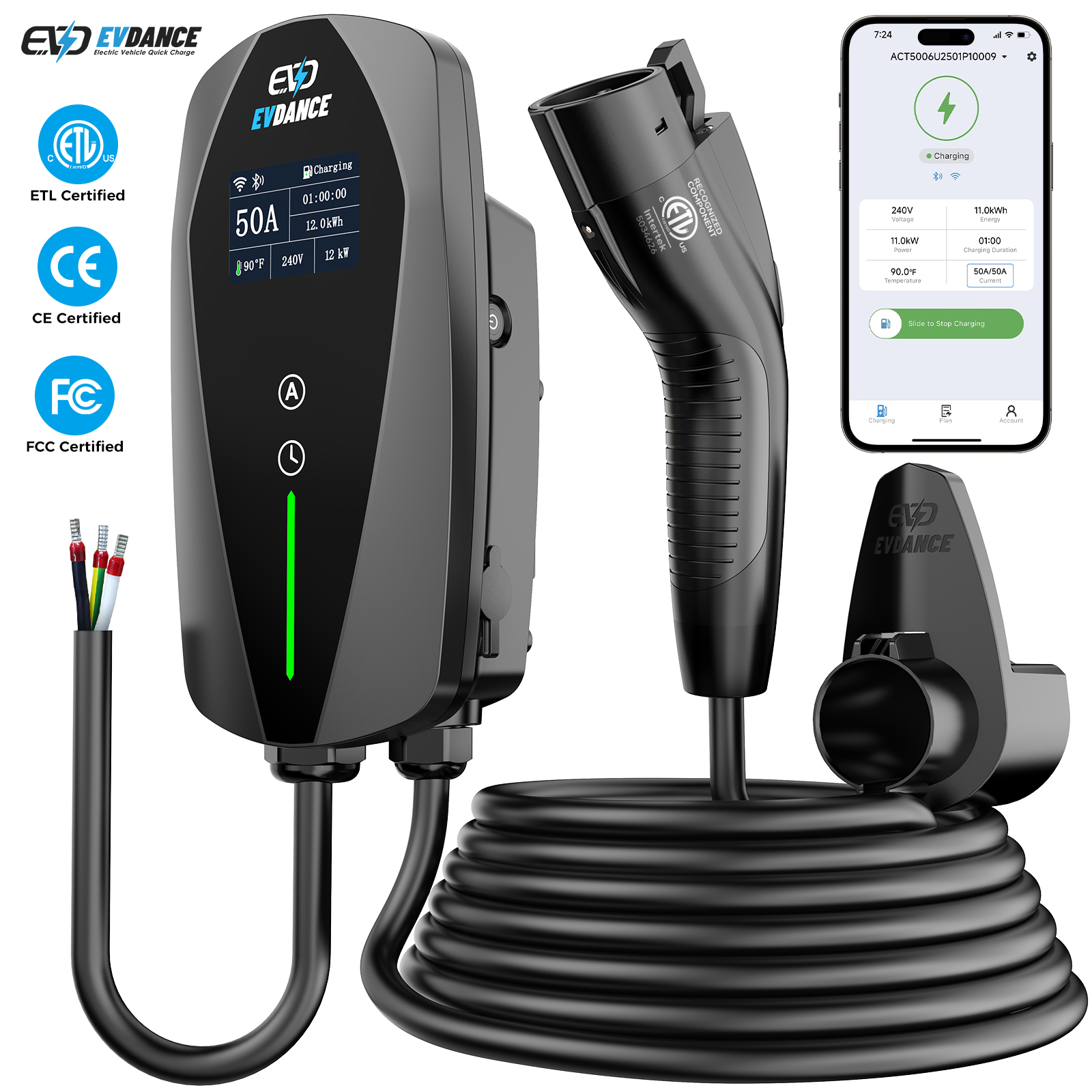

EVDANCE 50A AC Commercial Charger

Technical Specifications

Performance Resilience Connectivity Certifications

Maximum Charging Power

12kW Max (Single-Phase)
Max Rated Current

50A
Charge Connector

Type 1/Sae J1772
Cable Length

25 ft (7.6 m)
Input Plug

Hardwired / NEMA 14-50P / Customizable per batch
Start Modes

Plug-and-Play / RFID / Mobile App

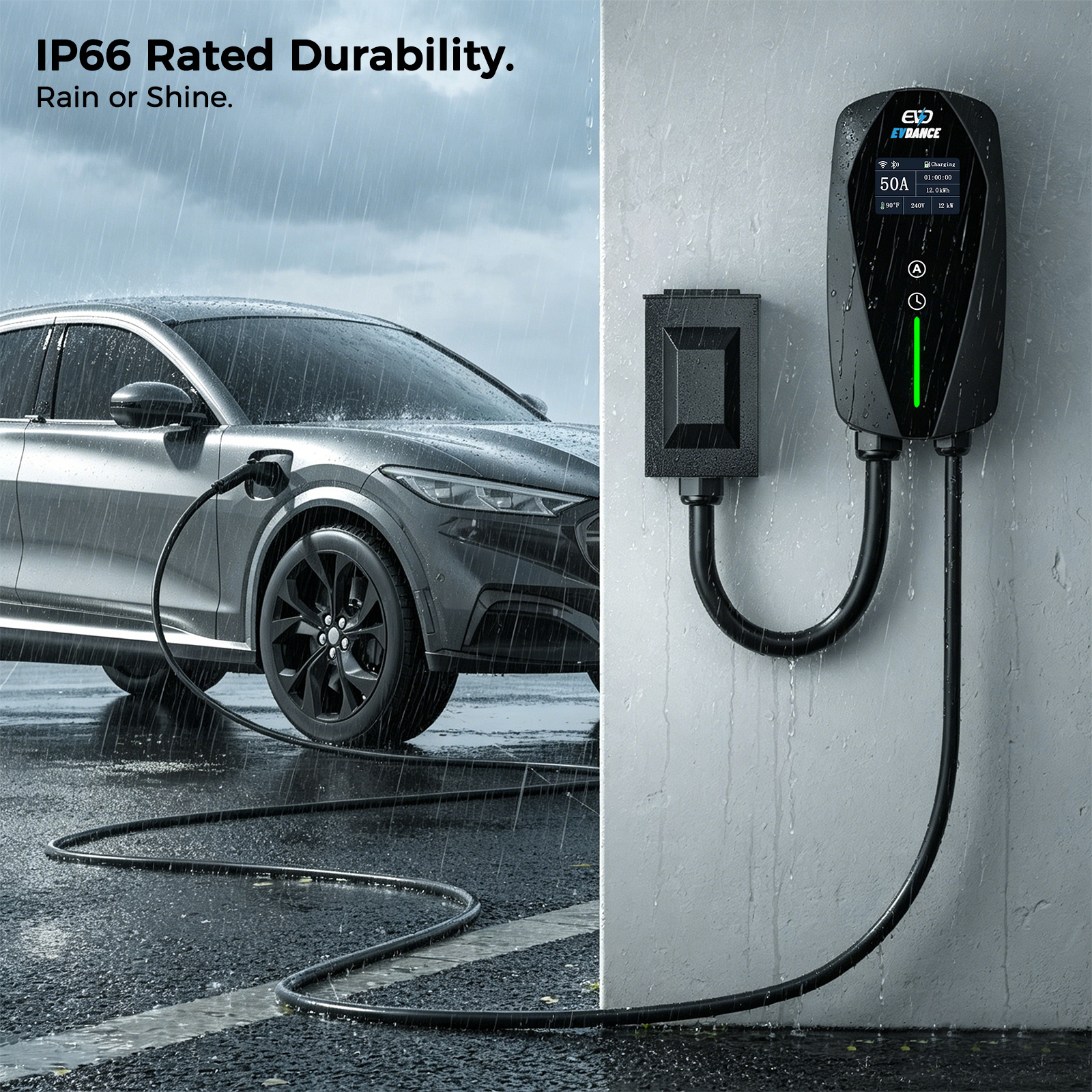

IP Rating

IP66
Operating Temperature

-30℃ to +50℃
Storage Temperature

-40℃ to +85℃
Enclosure Material

PC + TPU (impact-resistant, UV-stabilized)
Installation Type

Wall-Mounted
Package Dimensions (L×W×H)

44 × 34 ×20 cm
Net Weight

5.4 kg

RFID

Mifare ISO/IEC14443A
Communication

Wi-Fi, Ethernet, Bluetooth
4G

Optional
OCPP

1.6 Json
LED

Tri-Color Status

Safety Features

GFCI (RCD Type A) with 6mA DC Leakage Detection
Compliance

ETL Listed (UL 2594 / UL 2202), FCC
Charging Standard

NACS

This 12kW / 50A single-phase configuration represents the most requested specification by North American and European installation contractors, balancing optimal charging speed with standard residential electrical panels.

RECOMMEND POPULAR PRODUCTS

40A Commercial Wall-Mounted EV Charger
(EV-ACT4006U/B)

40A1 Phase9.6kW

40A Green Energy Charging
Solar/Wind Synced 35% Carbon Reduction*
Auto-adjusts to renewable supply
Off-peak energy storage
Weatherproof lP66 housing

Discover More

Certification-Focused

Certified Performance Excellence Rigorous Validation by Global Authorities

IP66 Validation

Submerged 1m/30min (IEC 60529)

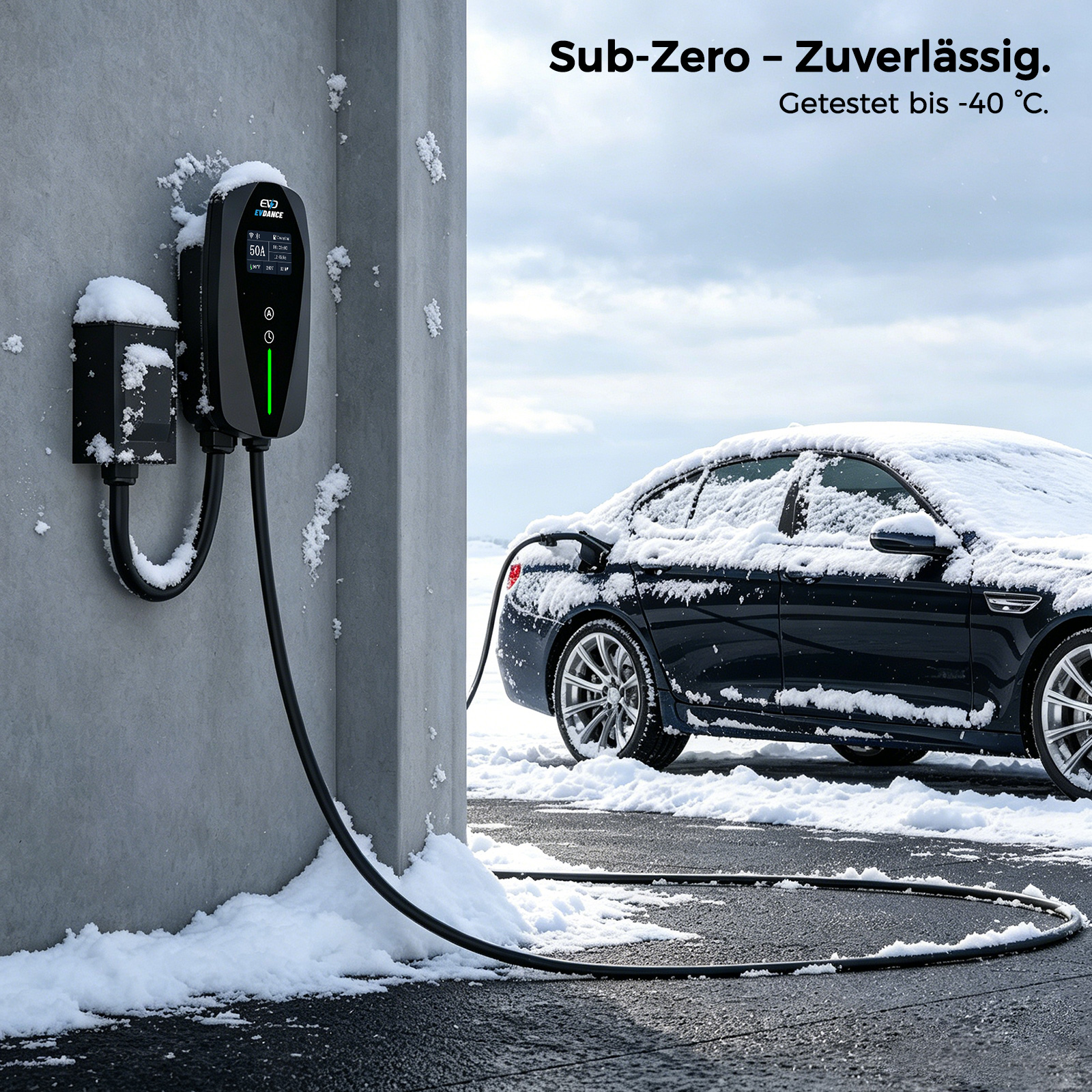

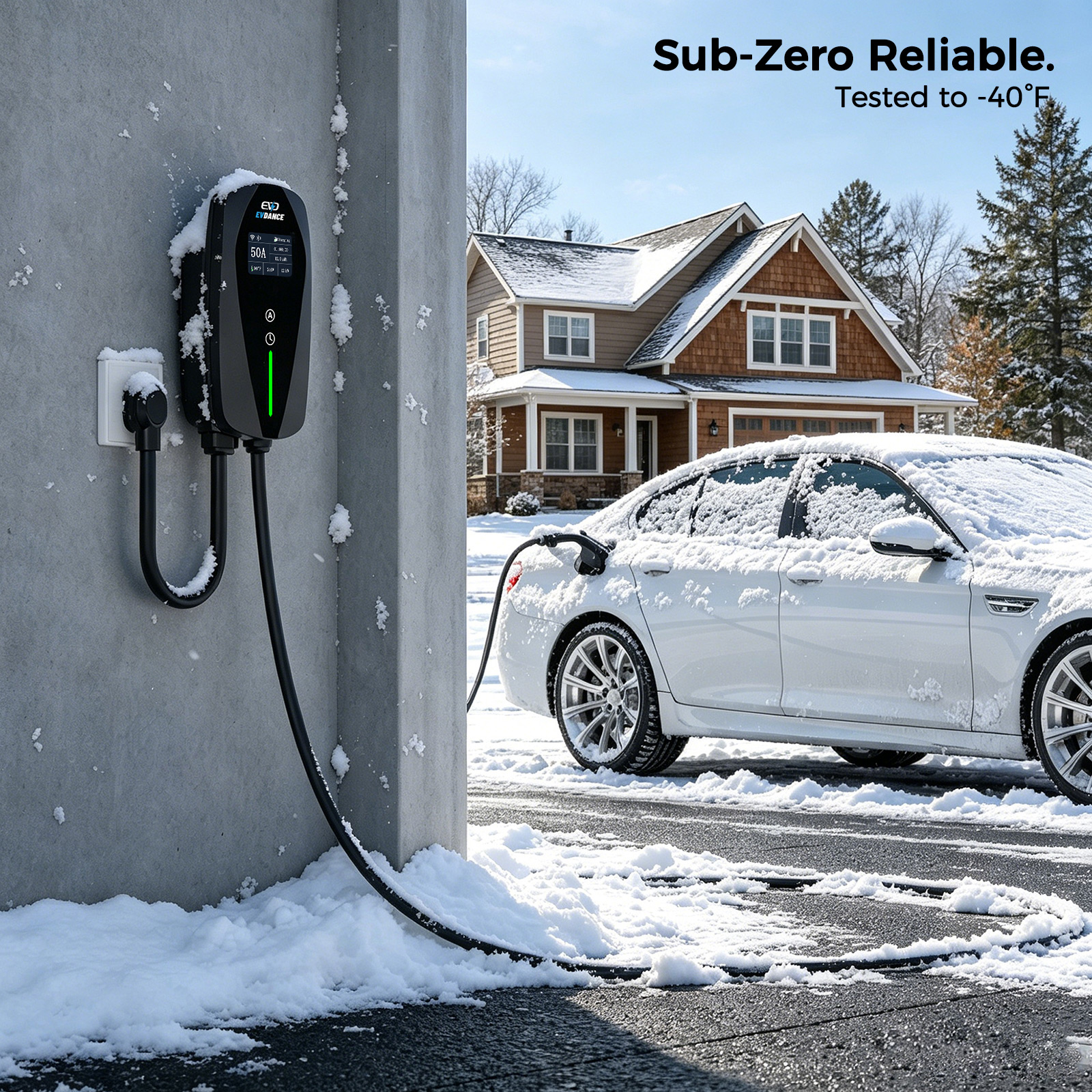

Arctic Endurance

-40℃ cold start (EN 60068-2-1)
Salt Spray Resistance

1,000hrs (ISO 9227)
Surge Protection

6kV lightning test (IEC 61000-4-5)

Frequently Asked Questions

Global Buyers' Top Concerns

01

What's delivery time?

Stock: 3 days (US/EU warehouses). Custom:7 days. Air freight for emergencies.
02

Do you provide custom branding?

OEM services available: Custom logos/colors + certification support. MOQ 100 units.
03

Can I monitor remotely?

Yes: Track usage & costs via app/web. Integrates with Fleetio/Geotab for fleet management.
04

Is it compatible with my EV?

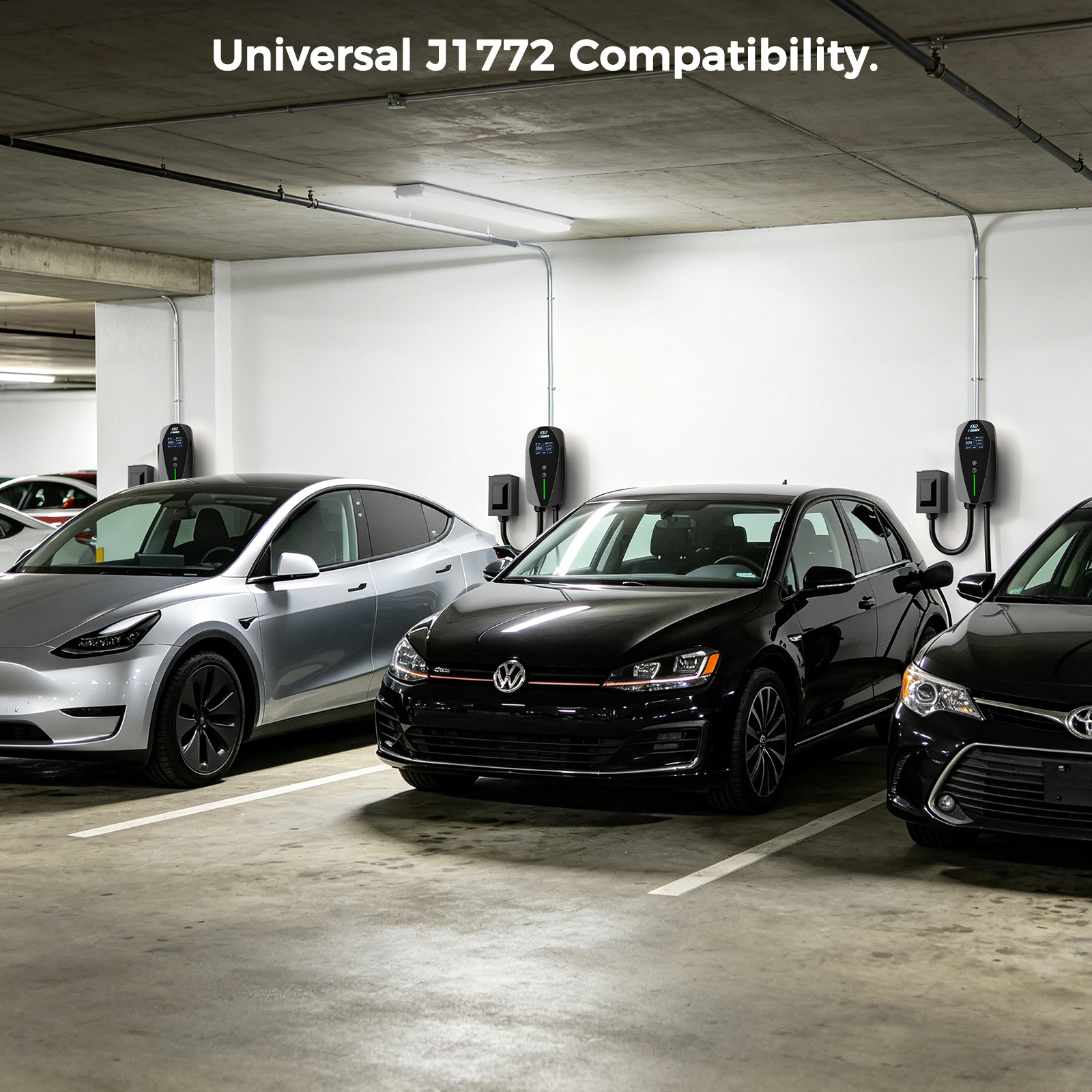

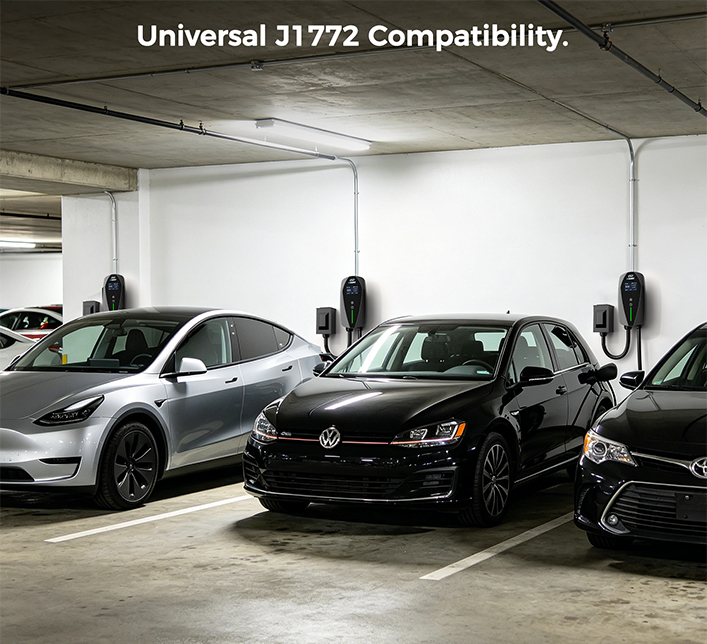

Works with all brands (Tesla, BYD, VW etc.) using Type 1/2/CCS connectors. OCPP 1.6J enables plug-and-charge.
05

What charging speeds do you offer?

Commercial-grade power (3.7-22kW+) with 3x faster charging than standard units. Intelligent grid adjustment ensures optimal performance.
